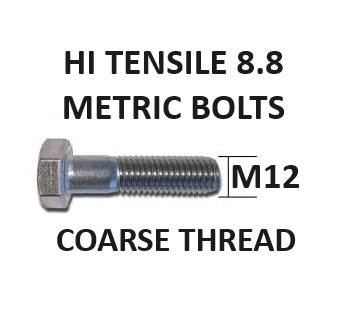

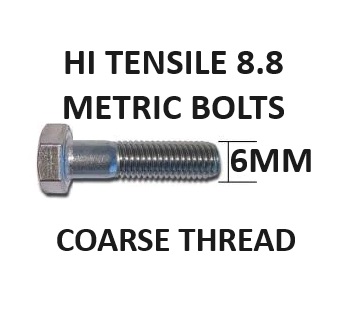

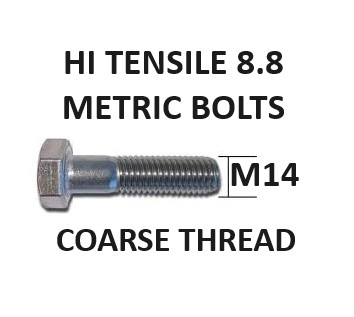

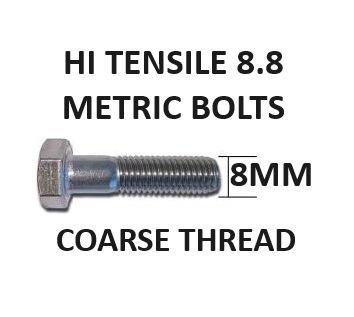

Metric Coarse High Tensile Class 8.8 Hex Head Bolt Range
Welcome to our superior range of Metric Coarse High Tensile Class 8.8 Hex Head Bolts, featuring robust zinc-plated bolts and set screws. Designed for exceptional strength and durability, these bolts are perfect for a wide array of industrial, construction, and mechanical applications.
Product Features:
Class 8.8 High Tensile Strength: Our bolts are engineered to deliver excellent tensile and yield strength, ensuring reliable performance under high-stress conditions.
Zinc Plating: Enhances corrosion resistance, providing long-lasting durability and protection in various environments.
Hex Head Design: Allows for easy tightening and loosening using standard tools, ensuring secure and efficient fastening.
Torque Recommendations: For optimal performance and safety, adhere to the following torque values for our Metric Coarse High Tensile Class 8.8 Hex Head Bolts:
M5: 8.8 - 5.5 Nm
M6: 8.8 - 9.5 Nm
M8: 8.8 - 23 Nm
M10: 8.8 - 46 Nm
M12: 8.8 - 80 Nm
M16: 8.8 - 200 Nm
M20: 8.8 - 390 Nm
M24: 8.8 - 660 Nm
M30: 8.8 - 1330 Nm
Breaking Strength: Our bolts are built to meet rigorous standards, with breaking strengths for M5 to M30 sizes as follows:
M5: 8.8 - 6.7kN
M6: 8.8 - 9.5kN
M8: 8.8 - 20.0kN
M10: 8.8 - 32.0kN
M12: 8.8 - 46.0kN
M16: 8.8 - 80.0kN
M20: 8.8 - 125.0kN
M24: 8.8 - 180.0kN
M30: 8.8 - 290.0kN
Drill and Tap Information: For precise installation, use the following drill and tap sizes:
M5: Drill Size - 4.2mm, Tap Size - M5 x 0.8
M6: Drill Size - 5.0mm, Tap Size - M6 x 1.0
M8: Drill Size - 6.8mm, Tap Size - M8 x 1.25
M10: Drill Size - 8.5mm, Tap Size - M10 x 1.5
M12: Drill Size - 10.2mm, Tap Size - M12 x 1.75
M16: Drill Size - 14.0mm, Tap Size - M16 x 2.0
M20: Drill Size - 17.5mm, Tap Size - M20 x 2.5
M24: Drill Size - 21.0mm, Tap Size - M24 x 3.0
M30: Drill Size - 26.5mm, Tap Size - M30 x 3.5
Material Certificates: Quality assurance is our priority. Material certificates are available upon request to verify compliance with industry standards.
Customer Support: Our knowledgeable staff is ready to assist you with any inquiries or technical support you may need. Feel free to call us at 1300 589 836 for personalized service and expert advice.
Explore our Metric Coarse High Tensile Class 8.8 Hex Head Bolt range today and experience the strength, reliability, and precision that our products offer.
